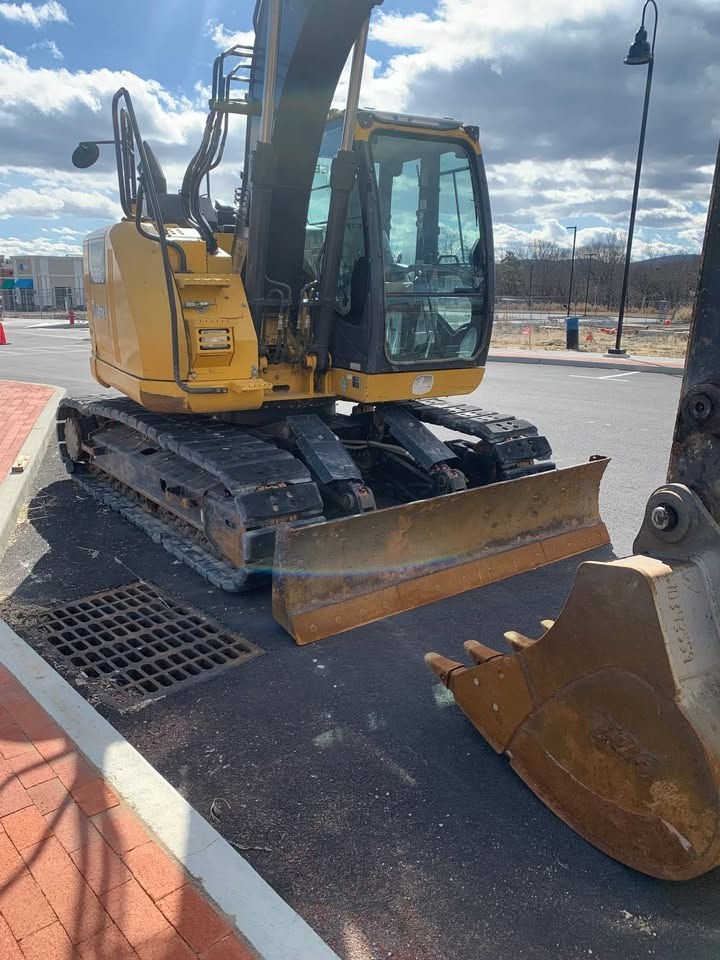

John Deere 135G Midi Excavator

Dimensions

Ground Clearance

1.35ft in

Tail Swing Radius

4.89ft in

Track Gauge

6.53ft in

Digging Reach - Mono Boom

27.53ft in

Dump Height - Mono Boom

22.41ft in

Ground Level Reach - Mono Boom

27.04ft in

Overall Width

8.17ft in

Standard Dipper

8.27ft in

Track Length On Ground

9.45ft in

Transport Height - Maximum

9.42ft in

Transport Length Mono Boom

24.18ft in

Undercarriage Overall Length

11.75ft in

Dig Depth - 2.44m 8 Ft Flat Bottom

17.29ft in

Width Over Standard Tracks

8.17ft in

Dig Depth - Mono Boom

18.02ft in

Dig Height - Mono Boom

30.48ft in

Specifications

Driveline

Displacement

183.1cu in

Engine Manufacturer

Isuzu

Emission Rating

Tier 4

Rated Speed

2000rpm

Engine Output - Net

100.6hp

Number Of Cylinders

4

Number Of Carrier Rollers - Each Side

1

Number Of Track Rollers - Each Side

7

Capacities

Fuel Tank - Diesel

58.2gal

Hydraulic Tank

15.9gal

System Voltage

24V

Number Of Batteries

2

Performance

Tractive Force

24729lb

Slew Speed

13rpm

Ground Bearing Pressure

6.3psi

Slew Torque

25.1lb ft

Boost Pressure

363psi

Breakout - Bucket

23380.2lb

Bucket Pressure

343

Dipper Tearout

15511.9lb

Gradeability

70%

Main Pumps - Maximum Flow

55.5gal/min

Travel Speed - High

3.5mph

Weights

Operating Weight

30644.3lb
